LIQUID PUMP, ADP, GAS COMPRESSOR AND OTHERS
LIQUID PUMP, ADP, GAS COMPRESSOR AND OTHERS
SGM series
Nikkiso Non-seal pump
ADP
Air drive pump
MGC
Gas compressor
Flexible tube for refrigerant

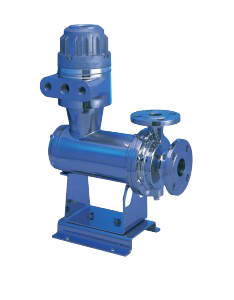

SGM series Nikkiso Non-seal pump
Product name
SGM series Nikkiso Non-seal pumpDescription
This is Nikkiso’s liquid pump used for refrigerant liquid forced circulation type cooling system. Integrating pump and motor created seal-less pump with no leakage. We have low- to high-volume pumps corresponding to fluorocarbon, ammonia, and other diverse brine. Inquire with the Valve Division (Sales Department) after checking the content below when ordering.[Check items]
- Fluid name
- Flow rate (㎥/h or L/min)
- Head (m)
- Temperature (℃)
- Specific gravity
- Viscosity (mPa·s)
- Voltage (V)
- Frequency (Hz)
[Contact]
Valve Sales Department: TEL: 03-5904-9953 FAX: 03-5904-9954ADP（Air drive pump）
Product name

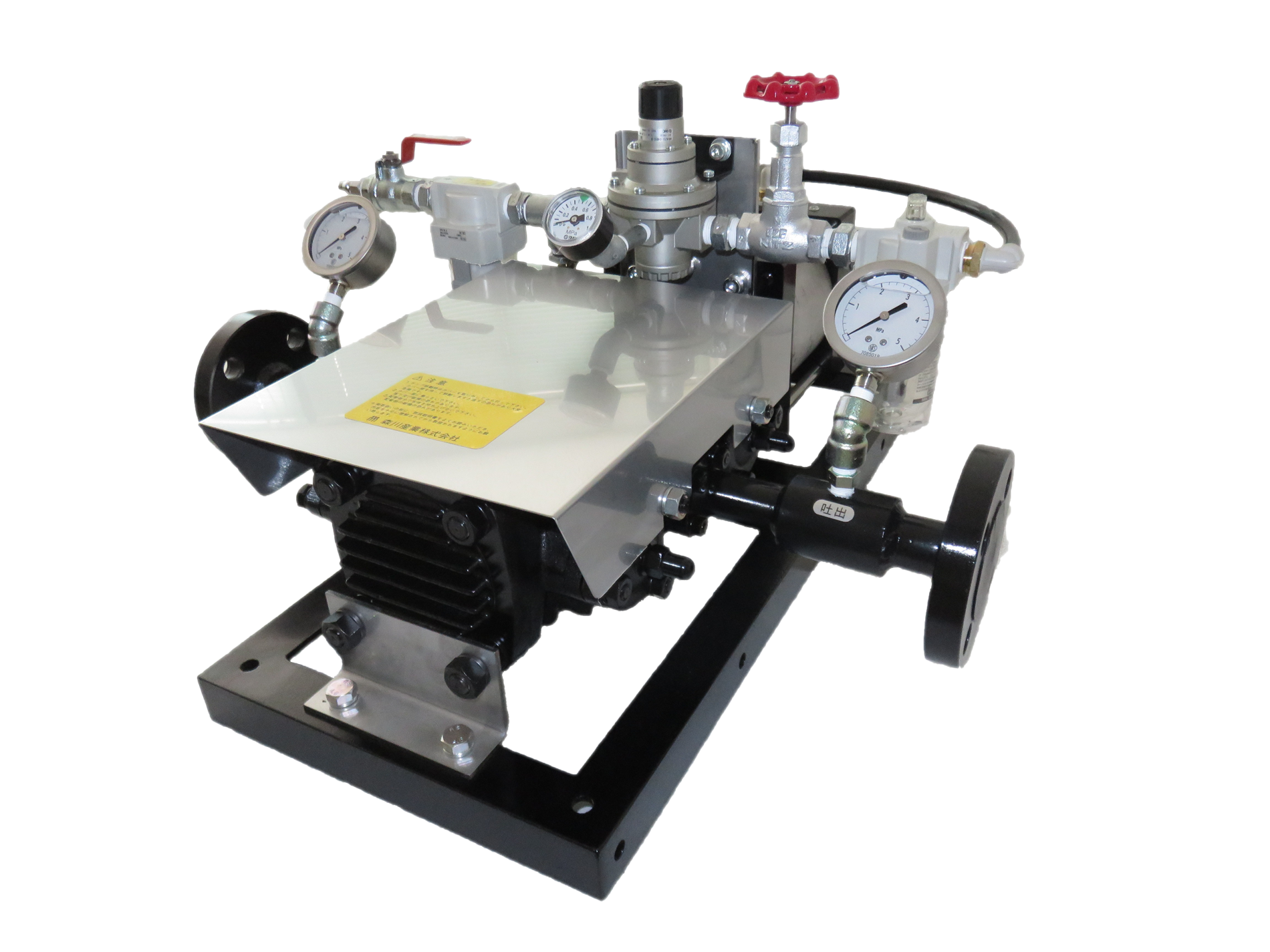

ADP（Air drive pump）Description
The air drive pump ADP uses pressure for air compressor, etc. to boost and discharge liquid. Using air as driving source makes it completely explosion proof. Discharge and pressure are easily controlled without using electricity. The pump is used mainly for receiving and easy filling of LP gas and freon, etc., for cleaning parts, and for pressure resistance airtight test for high voltage equipment.Contact
Valve Manufacturing Department TEL: 026-272-4592 FAX: 026-272-0380MGC MORIKAWA Gas compressor
Product name

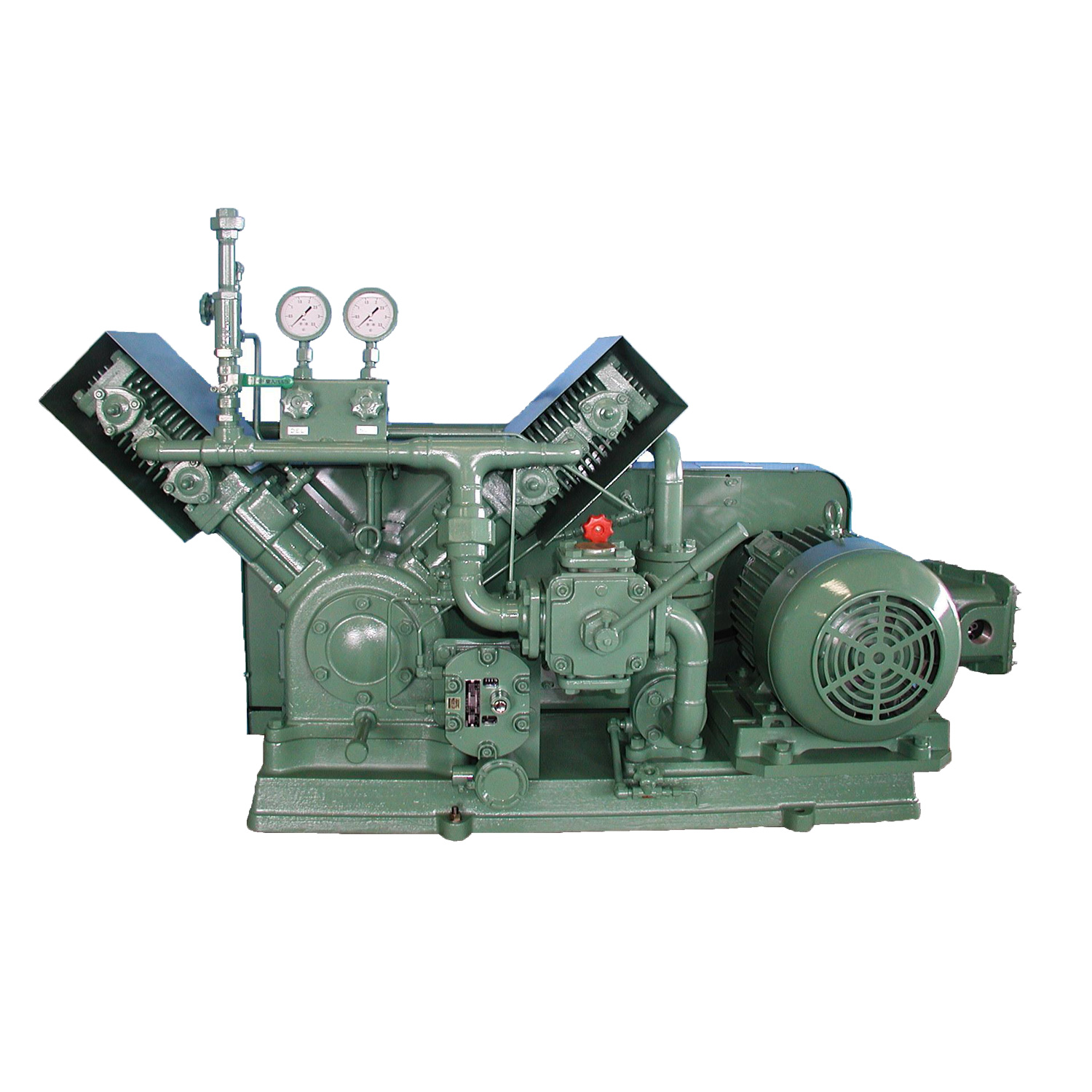

MGC MORIKAWA Gas compressorDescription
MORIKAWA gas compressor is equipment for filling LP gas from tank lorries into storage containers, etc. In addition to use for LP gas, this compressor can also be used for ammonia and freon. It is not single-acting but double-acting, which makes it extremely efficient with effective movement of top and bottom surface of piston decreasing rotation speed.Contact
Valve Manufacturing Department TEL: 026-272-4592 FAX: 026-272-0380Flexible tube for refrigerant [Completely made-to-order product]
Product name
Flexible tube for refrigerant [Completely made-to-order product]Description
This is a flexible tube for refrigerant. This product is a completely build-to-order product. When ordering, please provide us with diagrams for smooth operation. Diagrams can be simple, hand-drawn pictures. We will check with you about detail information. Check the content below and inquire with the Valve Division Sales Department.[Check items]
- Example of volume and target: xx, compressor.
- Example of type of connection on both ends: Flange or copper socket Flange size: RTK20A, ATK20A, etc. Male on one side, female on one side, etc., both side male, etc.
- Example of length, full length, length between fittings: xx mm.
- Example of refrigerant used: R410A, etc..
- Example of pressure used: Maximum pressure used x.x MPa.
- Example of range of use temperature: xx ℃ to xx℃.
- Example of use: For vibration absorption, etc.
