Valves for Refrigerant and Air Conditioning by Morikawa

Product name

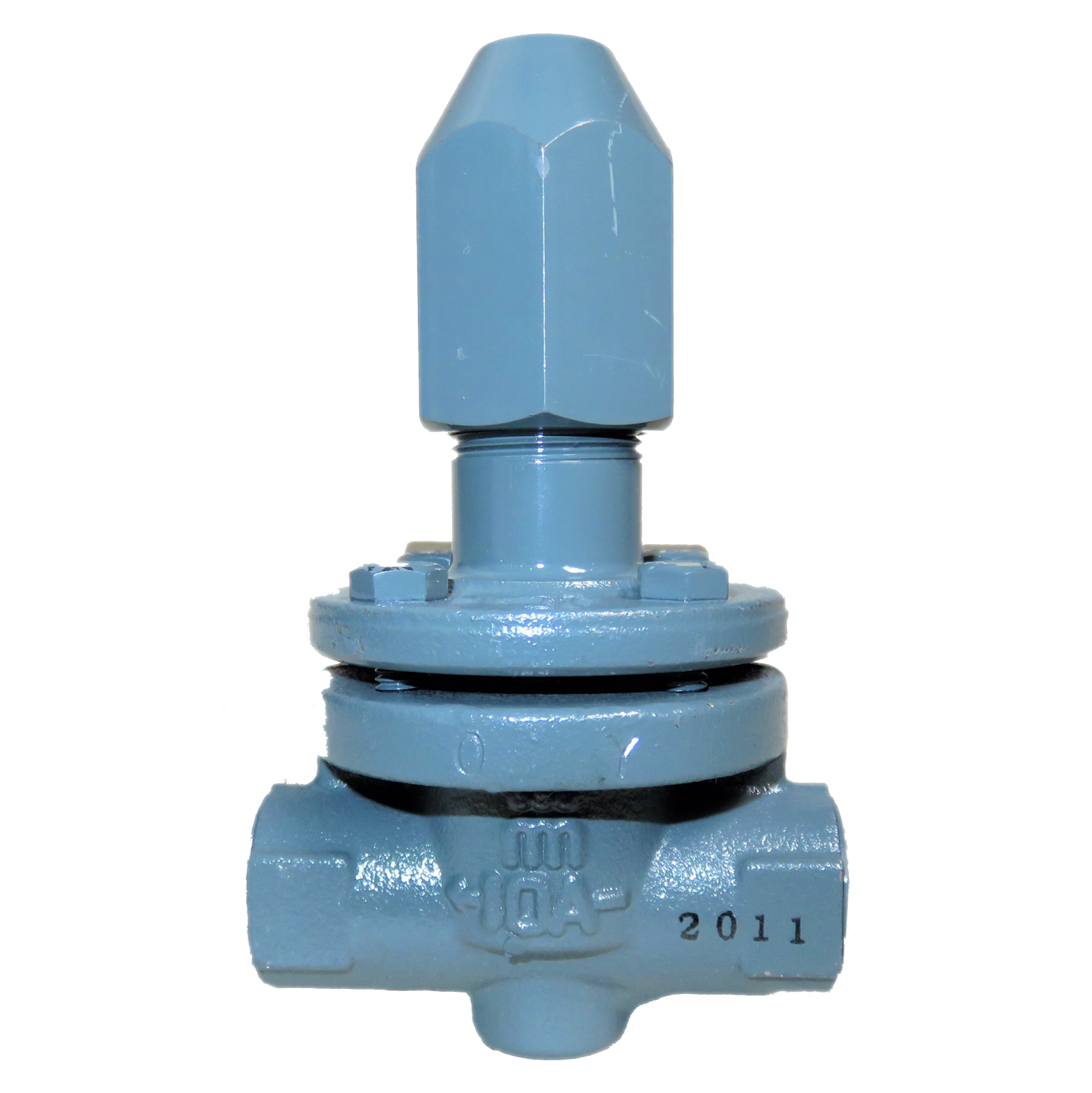

MGO (Globe valve)

Coupling

10A – 20A (Threaded connection)
10A – 200A (Welded connection)

Available refrigerants

R22・NH3・R134a・R404A・R407C・R410A・R448A
*Please inquire us for other available refrigerants.

Description

Straight pipe stop valve with MORIKAWA’s original structure. Special internal structure and a sealing cap on the top prevent refrigerant from leaking out. In addition, use of high sealing materials, such as special-formula white metal and Teflon, on the valve surface prevents refrigerant from leaking inside.

Product name

MAO (Angle valve)

Coupling

10A – 20A (Threaded connection)
10A – 200A (Welded connection)

Available refrigerants

R22・NH3・R134a・R404A・R407C・R410A・R448A
*Please inquire us for other available refrigerants.

Description

General purpose 90-degree angle stop valve. Like MGO, the special internal structure and the sealing cap on the top prevent refrigerant from leaking out. In addition, use of high sealing materials, such as special-formula white metal and Teflon, on the valve surface prevents refrigerant from leaking inside.

Product name

MEO (Manual expansion valve)

Coupling

10A – 50A (Welded connection)

Available refrigerants

R22・NH3・R134a・R404A・R407C・R410A・R448A
*Please inquire us for other available refrigerants.

Description

Turn the spindle inside to control the valve opening and expand the refrigerant. Special internal structure and a sealing cap on the top prevent refrigerant from leaking out.

Product name

MNO(Flow rate control valve)

Coupling

10A – 50A (Welded connection)

Available refrigerants

R22・NH3・R134a・R404A・R407C・R410A・R448A
*Please inquire us for other available refrigerants.

Description

Turn the spindle inside to control the valve opening and refrigerant flow rate. Special internal structure and a sealing cap on the top prevent refrigerant from leaking out.

Product name

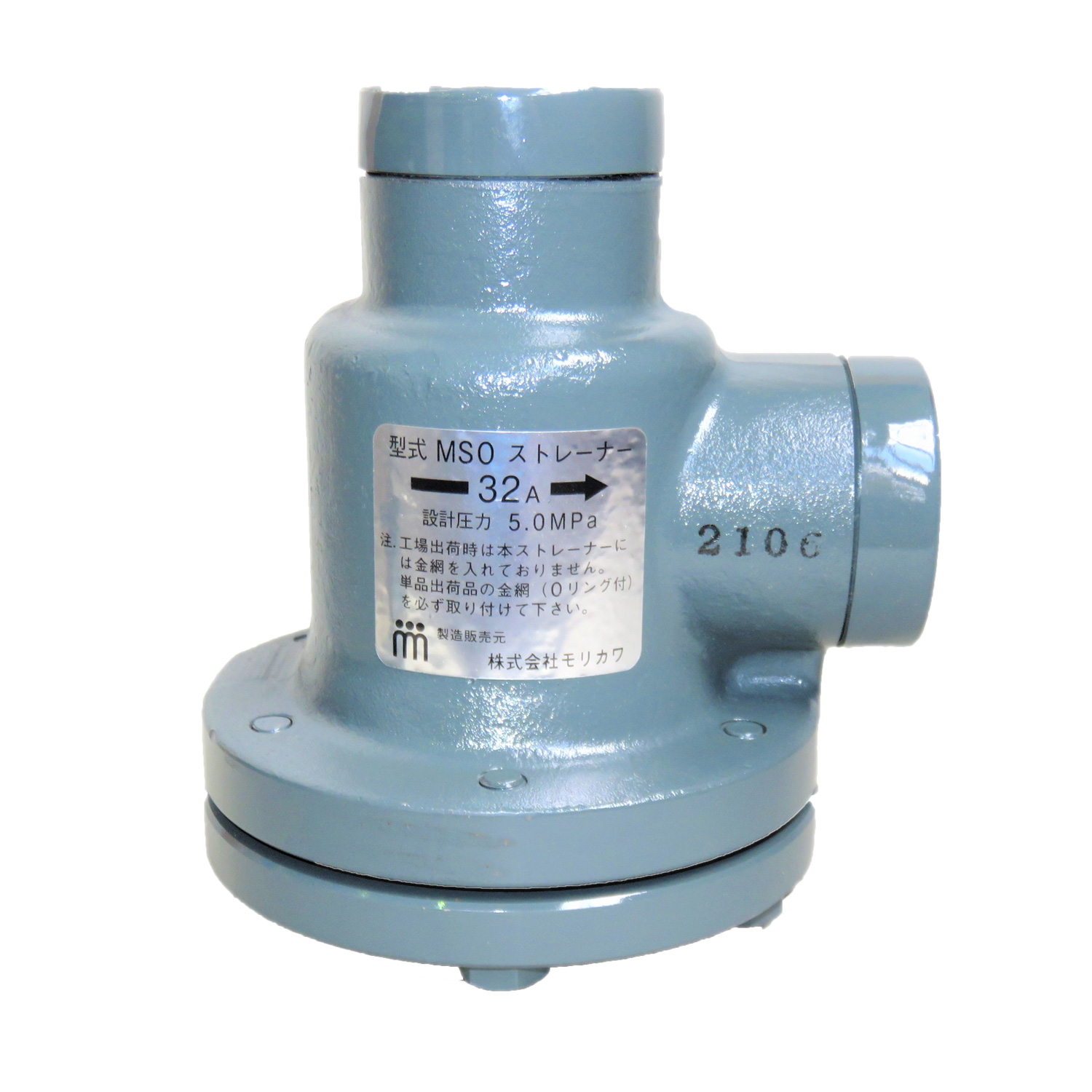

MSO (Strainer)

Coupling

10A – 80A (Welded connection)

Available refrigerants

R22・NH3・R134a・R404A・R407C・R410A・R448A
*Please inquire us for other available refrigerants.

Description

Strainer for removing waste and impurities in the refrigeration cycle. Several types of metal meshes are available. You can order according to your need. The strainer body and metal mesh need to be ordered separately.

Product name

MIC (Check valve)

Coupling

10A – 50A (Welded connection)

Available refrigerants

R22・NH3・R134a・R404A・R407C・R410A・R448A
*Please inquire us for other available refrigerants.

Description

Check valve for preventing backflow of refrigerant in the pipe. Suitable for either gas line or liquid line. This lightweight valve minimizing the cracking pressure, is designed to be closed under very low pressure.

Product name

MSC (Check valve with stop valve)

Coupling

25A – 100A (Welded connection)

Available refrigerants

R22・NH3・R134a・R404A ・ R407C・R410A・R448A
*Please inquire us for other available refrigerants.

Description

Check valve with stop valve that has both functions of stop valve and check valve. Suitable for either gas line or liquid line. Turn the spindle inside to fully close the valve, and the valve becomes a stop valve. Loosen the spindle to improve the check valve performance.

Product name

BFW (Ball valve for copper pipe)

Coupling

1/4 – 2-1/8 (Brazed)

Available refrigerants

R22・R134a・R404A ・ R407C・R410A・R448A
*Please inquire us for other available refrigerants.

Description

Copper pipe ball valve with brazed connection. This bidirectional valve is capable of controlling the flow of liquid or gas in either direction. Remove the sealing cap on the top and rotate the stem inside to open/close the valve.

Product name

BFW-DF (Ball valve for copper pipe)

Coupling

1/4 – 3/4 (Flare connection)

Available refrigerants

R22・R134a・R404A ・ R407C・R410A・R448A

Description

Copper pipe ball valve with flare connection. This threaded connection valve is suitable for applications unable to use fire. This bidirectional valve is capable of controlling the flow of liquid or gas in either direction. Remove the sealing cap on the top and rotate the stem inside to open/close the valve.

Product name

BSF (Steel pipe ball valve)

Coupling

10A – 50A (Butt welding connection)

Available refrigerants

R22・NH3・R134a・R404A ・ R407C・R410A・R448A

Description

Steel pipe ball valve with butt welding connection. Saves installation space with less piping resistance and more compact body compared to normal stop valves. Open/close the valve only by turning the upper lever 90°.

Product name

M2-SVS (Threaded /safety valve)

Coupling

10A~20A

Product name

M2-SVF₋RTK (Flanged /safety valve)

Coupling

10A~20A

Product name

FSVW (Butt welded /safety valve)

Coupling

25A (Inlet side: Joint type)

Product name

FSVW (Butt welded /safety valve)

Coupling

32A – 65A (Inlet and outlet sides: Joint type)

Available refrigerants

R22・NH3・R134a・R404A ・ R407C・R410A・R32・R448A

Description

Works as a safety device for letting the refrigerant escape when the pressure of the compressor or pressurized reservoir becomes extremely high. Various connection types are available based on the size: Threaded, flanged and butt welded.

[How to order the safety valve]

When ordering the safety valve, check the safety valve design pressure table in the catalog below and specify a refrigerant and simmering pressure. If your desired safety valve cannot be found in the safety valve design pressure table, check the refrigerant and system design pressure and contact us separately. After receiving an order, the safety valves are manufactured while setting the pressure of the valves one by one. Therefore, please note that the standard delivery time is 1.5 to 2 months.


[Safety valve certificate]

The nameplate and certificate of an actual safety valve indicate the measured value of the simmering pressure in the operation experiment. (Example: Order received: 1.72 MPa or higher →Certificate: 1.77 MPa)
The certificate will be enclosed, mailed separately, emailed with PDF attachment, etc. Please contact us at the time of ordering for more details. The certificate’s warranty period is one year from the date of issue.


[Safety valve readjustment service]

Once a safety valve is activated, the spring is loaded and the valve will not return to the original state. Therefore, we provide a safety valve readjustment service. Please send the safety valve body to our Nagano branch. We will readjust pressure of the valve as per your request and will coat the valve before returning it to you. For more details, please contact our Valve Division (Sales Department).

Product name

MDO/CAO (Liquid line dryer)

Coupling

20A – 80A (Butt welding connection)

Available refrigerants

R22・R134a・R404A ・ R407C・R410A・R448A

Description

Dryer with high capacity replaceable core, for removing water or waste passing through the liquid line. The dryer body and the dedicated dryer core need to be ordered separately. Please note that the capacity of the dryer core varies depending on the type.

Product name

RTK (Refrigerant pipe /steel pipe flange)

Coupling

10A – 100A (Butt welding connection)

Available refrigerants

R22・NH3・R134a・R404A ・ R407C・R410A・R448A

Description

Steel pipe flange for use in the refrigerant pipe. The male and female flange includes bolts, nuts and a gasket. Either male or female flange is available. However, as bolts, nuts and a gasket are not included, please purchase them separately.

Product name

RBK (Refrigerant pipe /copper pipe flange)

Coupling

3/4 – 3-1/8 (Insert type silver brazed)

Available refrigerants

R22・NH3・R134a・R404A ・ R407C・R410A・R448A

Description

Steel pipe flange for use in the refrigerant pipe. The male and female flange includes bolts, nuts and a gasket. Either male or female flange is available. However, as bolts, nuts and a gasket are not included, please purchase them separately.

Product name

HAQ (Large accumulator) (Made to order product)

Coupling
[Copper pipe connection] 1B – 3-1/8B (Insert type silver brazed)
[Steel pipe connection] 25A – 80A (Butt welding connection)

Available refrigerants

R22・NH3・R134a・R404A ・ R407C・R410A・R448A

Description

Large accumulator for preventing damage caused by liquid compression. It stores mixture of oil and liquid refrigerant temporarily and returns the mixture to the compressor gradually and safely. It is a made to order product and the delivery time is about 1.5 months. Accumulators with special specifications are also available. Inquire with the Valve Division (Sales Department) after checking the content below when ordering.


[Check items]
  1. Refrigerant name
  2. Capacity
  3. Connection size (copper pipe or steel pipe)
    (20 ton or more or less than 20 tons)
  4. Design temperature (around-50℃)
  5. Legal refrigeration ton 20 ton

Operating Restrictions of Valves According to Exemplified Standards for The Refrigeration Safety Ordinance

The operating range of valves is restricted by the type of material, according to 20.2 Exemplified Standards for The Refrigeration Safety Ordinance.Especially in the low temperature region, the operating pressure is reduced to 1/2.5 or below of the original design pressure. Ammonia and Freon type refrigerants are available considering the refrigerant properties. However, be careful when using high pressure fluid even in the low temperature region, such as CO2.

Usage of Valves

MORIKAWA’s usage of valves is explained below:
Usage of valves mainly consists of 1. Installation allowable range, 2. Installation method, 3. Valve operating method, 4. Specified tightening torque values for screws, 5. Maintenance of valves.
Please check the catalog for details. For any questions, please contact Valve Division (Sales Department).

Options (Opening / Closing Tool, Cover Gasket, Gland Packing Set)

Opening Tool

The opening / closing tool is a tool dedicated for MORIKAWA’s M series. Attach it on the spindle and rotate it to open or close valves. This single opening / closing tool supports of valves in several sizes. This product is not included in the valves and needs to be ordered separately.

Cover Gasket

Cover gaskets vary in dimensions depending on the type and size of valves of each age. For details of the gasket types and dimensions, see the catalog. If valve type is not found, contact Valve Division (Sales Department).

Gland Packing Set

Two types of gland packing sets are available: a set of gland packing and O ring, and a set of gland packing and gland gasket available from March of 2011. Check the type, age, etc. of the valve currently being used before ordering. Please check the catalog for details.
